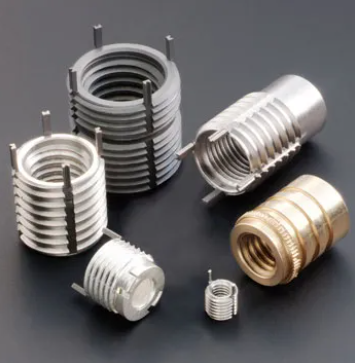

Acme Keylocking Threaded Inserts are used to quickly repair stripped, damaged or worn out threads with new stronger threads or for use in original equipment. Acme Inserts are easy to install and easy to remove. No special drills, taps or pre-winder tools are required. The Keys are driven down into the threads of the surrounding base material, locking the insert in place.
Features:
• Solid, one-piece insert construction provides
a high degree of pull-out strength
• Keys supply a positive mechanical lock
against rotation
• Easy installation and removal
• Installed with standard drills and taps
• No pre-winder tool required
• No tang to break-off
• May be used in many types of material
• MS/NAS Style inserts are produced to the
following standards:
MS51830 NAS1395 NA0149
MS51831 NA0146 NA0150
MS51832 NA0147 NA0151
NAS1394 NA0148

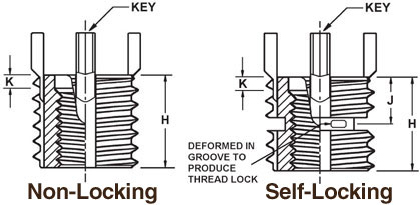

• Miniature, Lightweight, Heavy Duty, and
Extra Heavy Duty types with Non-locking
and Self-locking internal threads
Our technical team is ready to assist with product selection and quotes.
