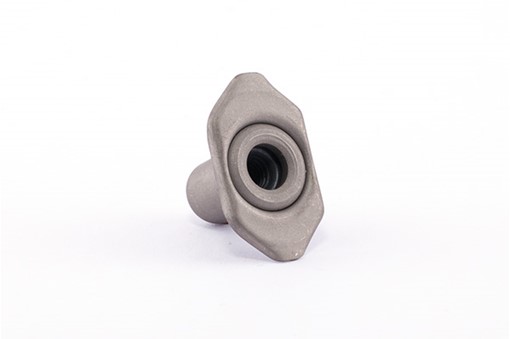

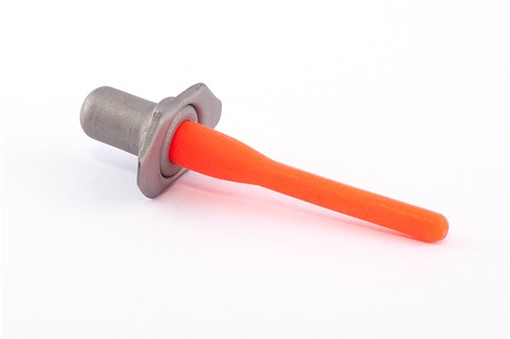

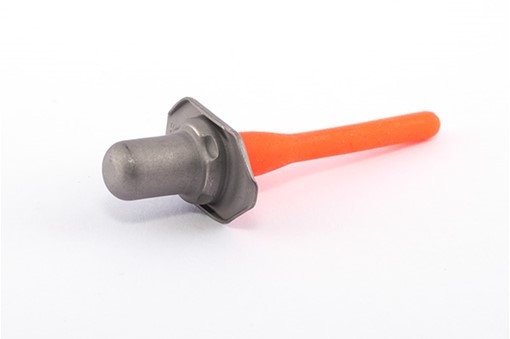

Sealed, extended (.040" radial) float nutplate for closeout of wet bays or pressure vessels where standard nut float is insufficient. Optional 50-cycle high-reuse nut element for applications requiring frequent access. Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive.
SIZES: Imperial thread size 10-32 (.190"-32) in standard counterbores -2 through -7.
MATERIALS: Dome / baseplate are A-286 Stainless Steel. Thrust washer is A-286 Stainless Steel or Anodized Aluminum. Nut is A-286 Stainless Steel with dry film lubrication. Alternatively, cadmium-plated nut available. Optional epoxy primer on bonding surface and dome.
FEATURES: Thread lock performance and nut strength per NASM25027 for steel and titanium bolts. Optional enhanced 50-cycle reuse with steel / stainless steel bolts (vs. 15-cycle standard per NASM25027). Nut and thread form compliant with AS8879. Non-locking nut element optionally available.
