Standoff bracket allows routing of systems along and over free flanges. Bracket attaches with a simple pinch; patented PINCHMOUNT® design holds bracket securely while adhesive cures.
Pinchmounts

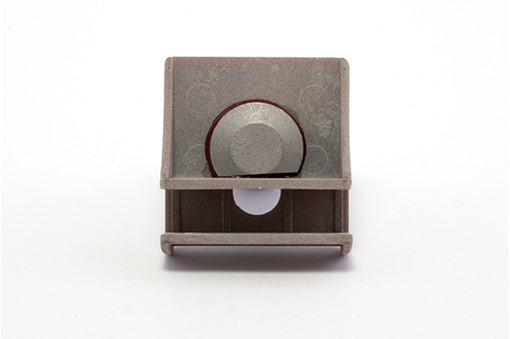

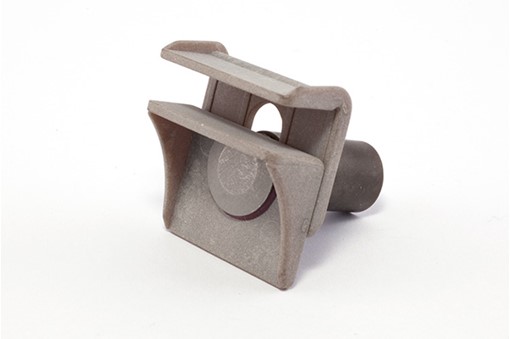

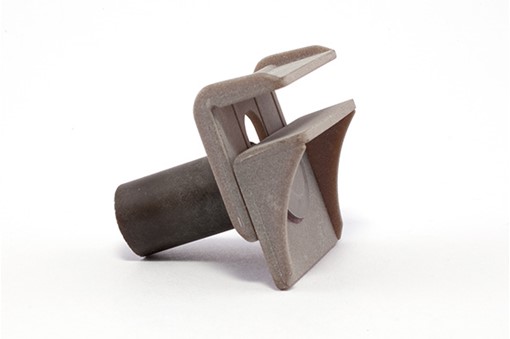

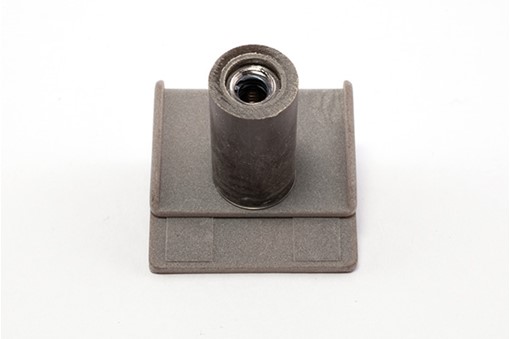

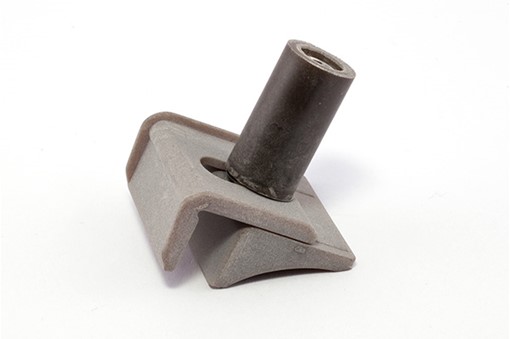

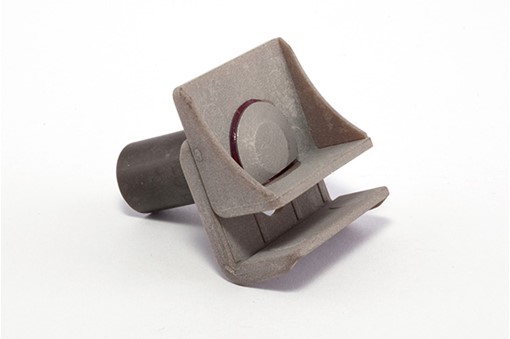

CB4233 - Standoff PINCHMOUNT Bonded Bracket
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial thread sizes from 6-32 (.138"-32) through 10-32 (.190"-32). Product available in standoff lengths from 0.500" to 2.000". Bracket accommodates flange thicknesses from 0.030" through 0.200".
MATERIALS: Bracket leaves are Glass/Epoxy, Carbon/Epoxy, or Glass-filled PEI Thermoplastic. Standoff is Anodized Aluminum, A-286 Stainless Steel, or Titanium. Standoff collar is Glass-filled PEI Thermoplastic.
FEATURES: Locking thread provided by MS21209 or NAS1130 thread insert. Compatible with CB9421 and CB9422 Line Clamp Supports.
- Cables & Wiring
- Equipment Attachment
- Insulation Blankets
- Lighting & Sensors
- Panels
- Tubing & Hoses
