Stud permits clamped attachment of systems to structure or securing of enclosures or other modular equipment. Supplied with disposable installation fixture.
Studs & Standoffs

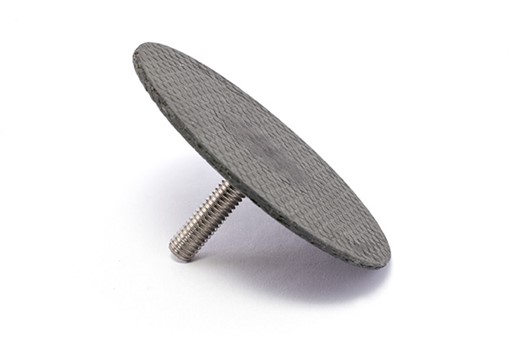

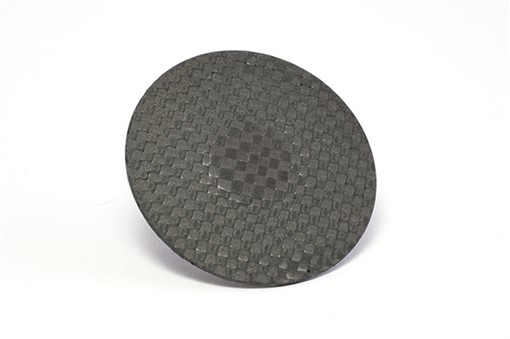

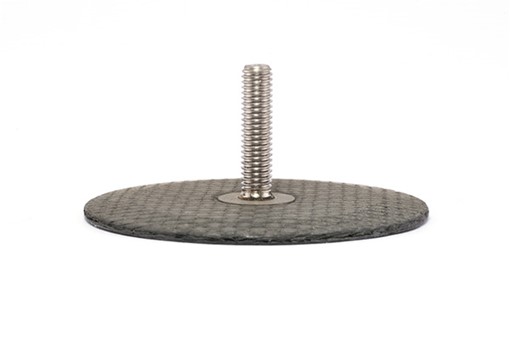

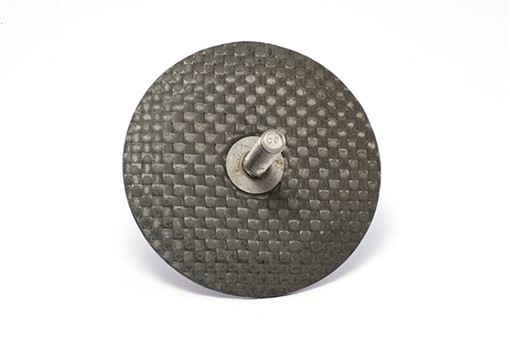

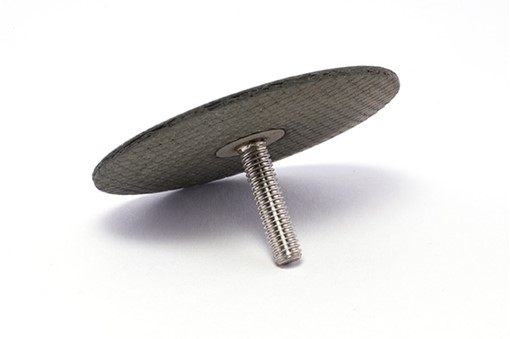

CB4200 - Extra Large Base Stud
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial thread sizes from 6-32 (.138"-32) to 5/16-24 (.312"-24). Standard 2.00" diameter round baseplate, with optional 1.25" X 2.00" trimmed baseplate available. Stud lengths from 0.500" through 2.000".
MATERIALS: Baseplate is Carbon/Epoxy or Glass/Epoxy. Stud is Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, or Titanium. Optional epoxy primer on bonding surface.
- Cables & Wiring
- Decking & Floorboards
- Equipment Attachment
- Insulation Blankets
- Interiors
- Lighting & Sensors
- Panels
- Structural Components
- Systems Attachment
- Tubing & Hoses
