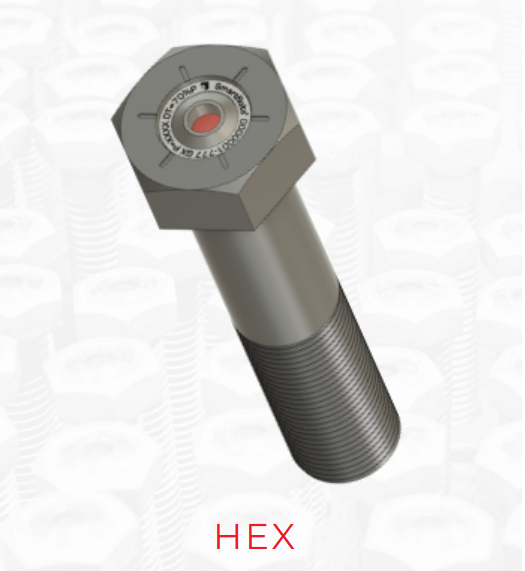

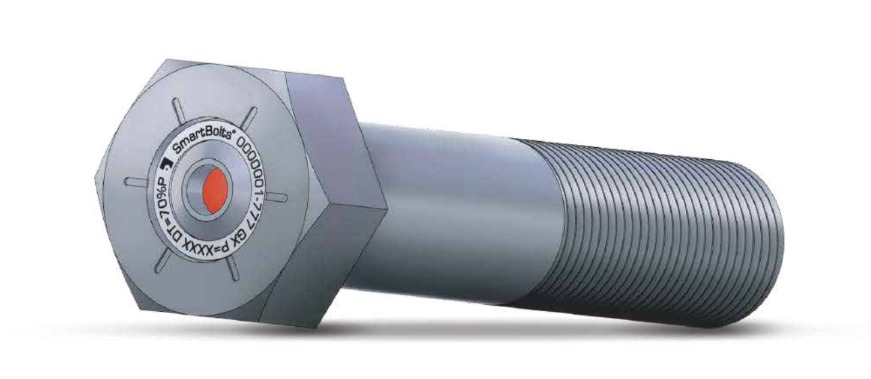

VISUAL INDICATOR BOLTS

Hex

Genuine Product AS9120B Certified Fast Delivery

SmartBolts Hex are intelligent fastening solutions designed with an integrated visual indication system that allows users to monitor bolt tension in real time. These bolts help ensure proper tightening by displaying the tension level through a visual indicator, reducing the risk of under-tightening or over-tightening. SmartBolts Hex improve reliability, safety, and maintenance efficiency in critical industrial applications. They are suitable for both pre-engineered and custom configurations and provide accurate bolt tension monitoring for a wide range of applications.


  • Bolt Type: Hex SmartBolt
  • Minimum Diameter: 7/16" (M10)
  • Maximum Diameter: 2.5" (M64)
  • Minimum Length: 1.25" / 30 mm
  • Maximum Length: 24" / 600 mm
  • Product Category Options: Pre-Engineered, Custom
  • Design Tension Set Point Range: 30%–90% of Fastener Proof Load
  • Accuracy: ±10%
  • Operating Temperature Range: -4°F to 168°F (-20°C to 75°C)
  • Heavy machinery and industrial equipment
  • Mining and construction equipment
  • Hydraulic excavators
  • Aerospace and defense applications
  • Manufacturing and OEM equipment
  • Structural and critical bolted joints
  • Equipment requiring regular bolt tension monitoring


Need help choosing the right product?

Our technical team is ready to assist with product selection and quotes.
