VISUAL INDICATOR BOLTS

Socket

Genuine Product AS9120B Certified Fast Delivery

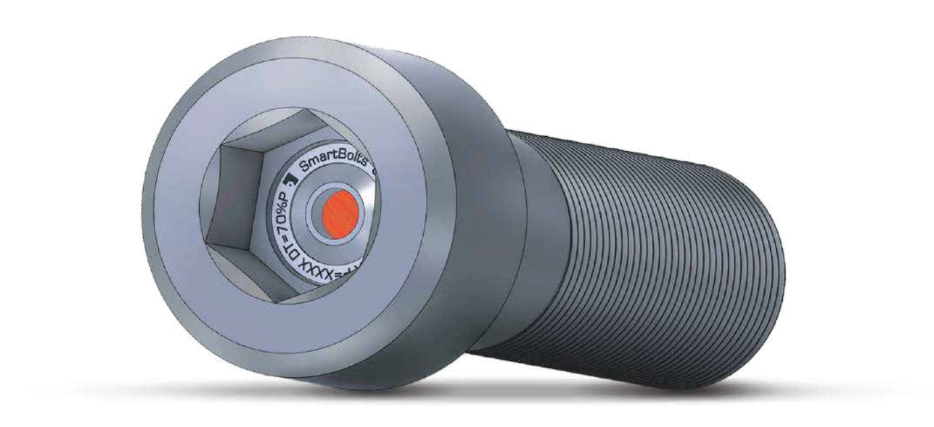

SmartBolts Socket are intelligent fastening solutions designed with an integrated visual tension indication system for real-time monitoring of bolt tension. The socket head design provides a compact structure and is ideal for applications with limited installation space. These SmartBolts help ensure proper tightening, reduce the risk of under-tightening or over-tightening, and improve reliability in critical fastening applications.

  • Bolt Type: Socket SmartBolt
  • Minimum Diameter: 1"
  • Maximum Diameter: 2.5" (M64)
  • Minimum Length: 1.25" / 30 mm
  • Maximum Length: 24" / 600 mm
  • Product Category Options: Custom
  • Design Tension Set Point Range: 30%–90% of Fastener Proof Load
  • Accuracy: ±10%
  • Operating Temperature Range: -4°F to 168°F (-20°C to 75°C)


  • Heavy industrial machinery
  • Mining and construction equipment
  • Hydraulic systems and equipment
  • Manufacturing and OEM applications
  • Aerospace and defense systems
  • Compact assembly installations
  • Critical bolted joint applications
