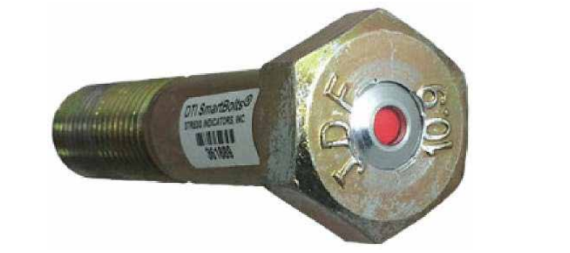

VISUAL INDICATOR BOLTS

M20 Class 10.9

Genuine Product AS9120B Certified Fast Delivery

SmartBolts M20 Class 10.9 are pre-engineered intelligent fastening solutions designed with an integrated visual tension indication system for accurate and real-time monitoring of bolt preload. These high-strength bolts ensure proper tightening and help eliminate the risks of under-tightening and over-tightening. Manufactured with Class 10.9 material and a yellow zinc finish, they provide superior strength, durability, and dependable performance in critical industrial applications.


  • Type: Hex Head Cap Screw
  • Diameter: M20
  • Thread Size: 2.5
  • Class: 10.9
  • Finish: Yellow Zinc
  • Design Tension: 70%P
  • Length Range: 50 mm – 240 mm
  • Design Tension Range: 134–142 kN
  • Modified Proof Strength: 190–203 kN
  • Ultimate Strength: 239–254 kN
  • Case Quantity: 10


  • Heavy machinery and industrial equipment
  • Mining and construction systems
  • Structural and mechanical assemblies
  • Hydraulic and power transmission systems
  • Manufacturing and OEM applications
  • Critical bolted joint applications
