Interference bolt fit sleeve transforms nominal bolt or pin into oversize fastener to address damaged hole conditions. Fastener properties meet or exceed those of traditional oversize hardware, with tremendous cost savings and rapid turnaround.
ACRES® Sleeves

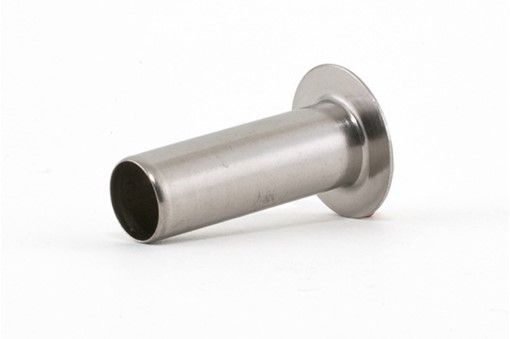

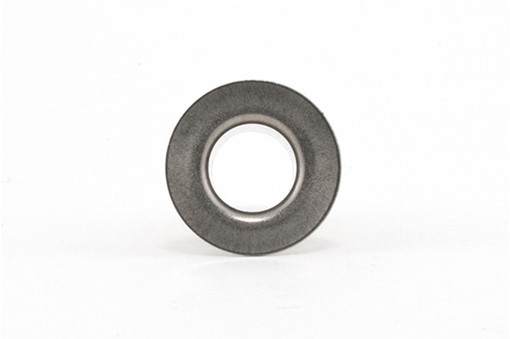

JK5547 - BOLTMOD® Protruding Tension-Head Sleeve, Second Oversize
Genuine Product
AS9120B Certified
Fast Delivery
HEAD STYLE: Protruding Tension, Second Oversize Diameter
SIZES: Inside diameters provide interference fit for Imperial size bolts in nominal diameters 05 (.156") to 3/8 (.375"). Grip lengths range to 1.25", depending upon diameter.
MATERIALS: Sleeve is A-286 Stainless Steel, with optional IVD or cadmium plating and/or cetyl alcohol lubrication.
- Fairings
- Hole Protection & Oversize Hole Correction
- Insulation Blankets
- Interiors
- Panels
- Repairs
- Structural Components
