Threaded bushing enables localized reinforcement of and attachment to panel structure. Supplied with disposable installation fixture. 1.25" Flange Diameter.
Bushings

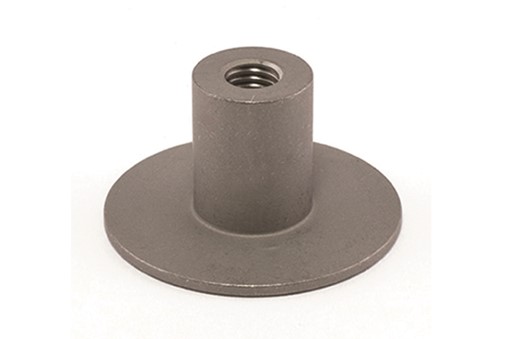

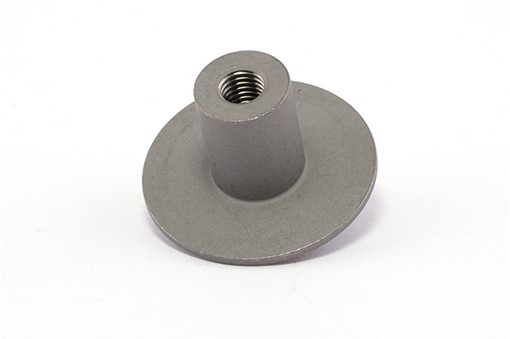

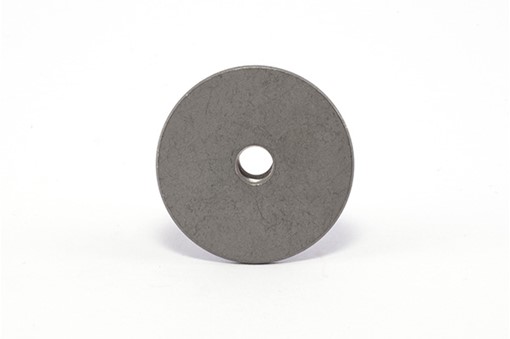

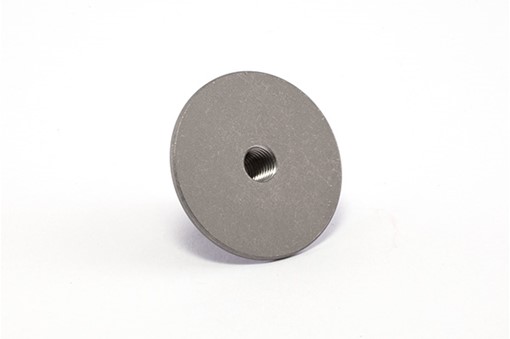

CB3005 - Threaded Bushing, Large Flange
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial fine thread sizes from 10-32 (.190"-32) to 3/8-24 (.375"-24), Imperial coarse thread sizes from 8-32 (.164"-32) to 3/8-16 (.375"-16), and metric thread sizes from M5 to M8. 1.25" Flange Diameter. Grip lengths from 0.25" to 1.50".
MATERIALS: Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, 316 Stainless Steel, and Titanium. Optional epoxy primer.
FEATURES: Standard 1.25" diameter flange, 0.75" x 1.25" trimmed flange optional.
- Brackets & Clamps
- Decking & Floorboards
- Fairings
- Interiors
- Panels
- Systems Attachment
