Blind threaded bushing enables localized reinforcement of and one-sided attachment to panel structure. Supplied with disposable installation fixture. 1.25" Flange Diameter.
Bushings

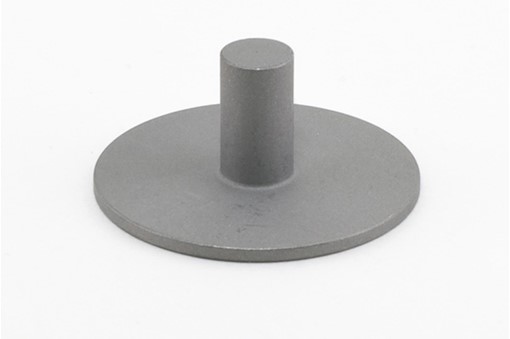

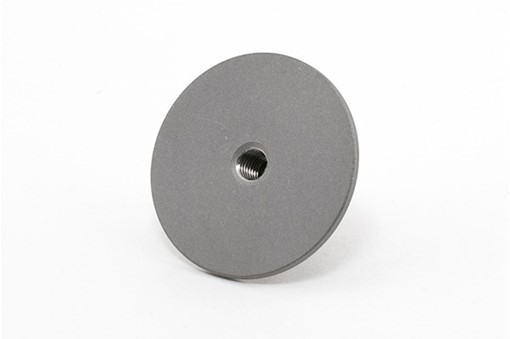

CB9060 - Blind Threaded Bushing, Large Flange
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial fine thread sizes from 10-32 (.190"-32) to 5/16-24 (.312"-24) and Imperial coarse thread sizes from 10-24 (.190"-24) to 5/16-18 (.312"-18). 1.25" Flange Diameter. Grip lengths from 0.50" to 1.00".
MATERIALS: Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, and Titanium. Optional epoxy primer.
FEATURES: Standard 1.25" diameter flange, 0.75" x 1.25" trimmed flange optional.
- Brackets & Clamps
- Decking & Floorboards
- Fairings
- Interiors
- Panels
- Systems Attachment
