Threaded bushing enables localized reinforcement of and attachment to panel structure. Supplied with internal elastic fixture for reduced footprint applications. 1.00" Max Flange Diameter.
Bushings

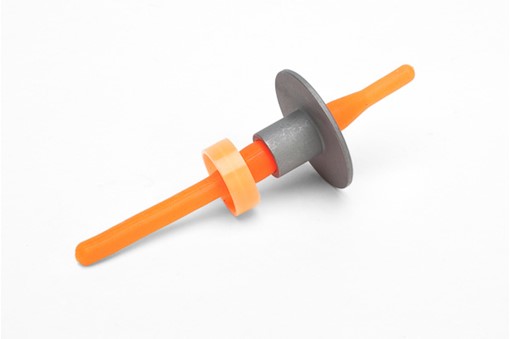

CB5006 - Threaded Bushing, Small Flange
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial fine thread sizes 10-32 (.190"-32) and 1/4-28 (.250"-28), Imperial coarse thread sizes from 06-32 (.138"-32) to 1/4-20 (.250"-20), and metric thread sizes from M3 to M5. Flange diameter varies by thread size.
MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, 316 Stainless Steel, and Titanium. Optional epoxy primer.
- Brackets & Clamps
- Decking & Floorboards
- Fairings
- Interiors
- Panels
- Systems Attachment
