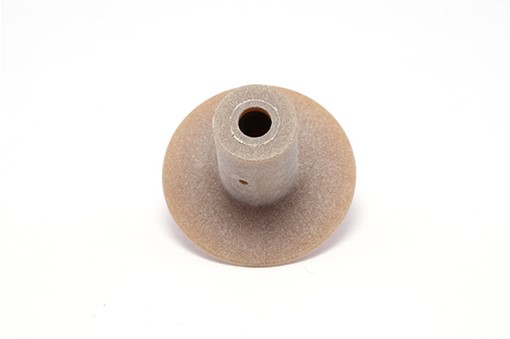

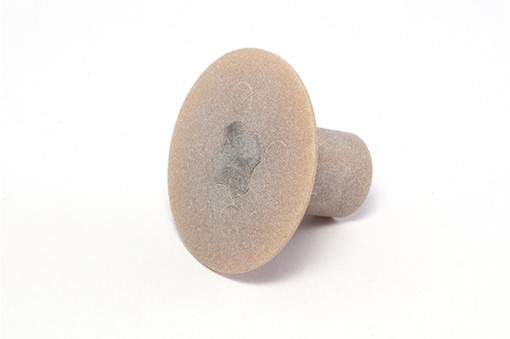

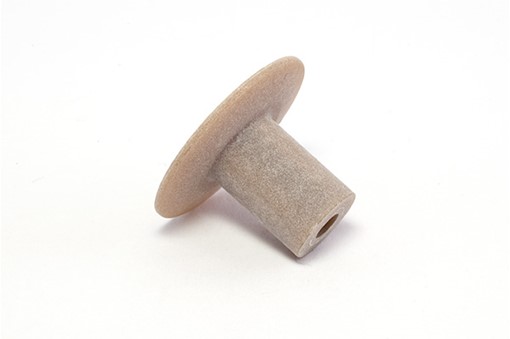

Composite standoff permits clamped attachment of systems and provides separation from structure. Metallic locking nut element delivers thread lock and durability. Supplied with disposable installation fixture.
Studs & Standoffs
CB4002 - Composite-Base Locking-Thread Standoff
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial thread sizes 8-32 (.164"-32) and 10-32 (.190"-32), and metric thread size M5. Standard baseplate diameter 1.25", with optional 0.75" X 1.25" trimmed baseplate. Standoff lengths from 0.375" through 1.625".
MATERIALS: Standoff material is Glass-filled PEI, PEEK, or PEKK Thermoplastic. Nut is A-286 Stainless Steel with dry film lubrication. Optional epoxy primer on bonding surface.
FEATURES: Locking thread provided by NAMS25027 compliant nut element.
