Threaded bushing with locking thread enables localized reinforcement of and attachment to panel structure. Supplied with disposable installation fixture. 0.62" Flange Diameter.
Bushings

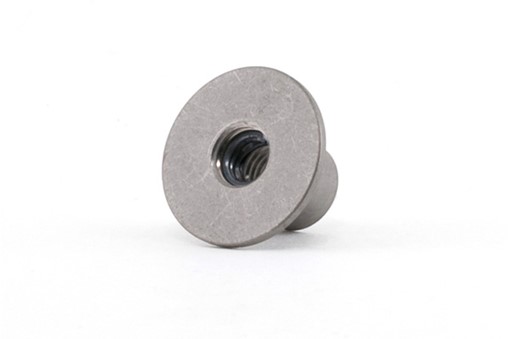

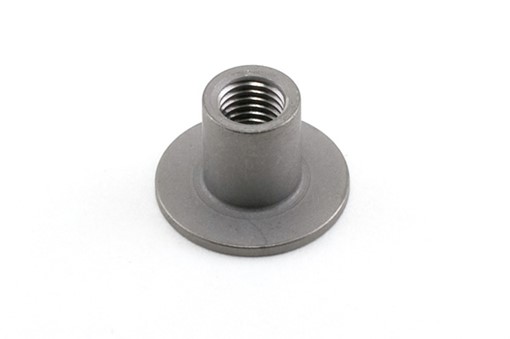

CB9085 - Locking Threaded Bushing, Small Flange
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial thread sizes 8-32 (164"-32), and 10-32 (.190"-32). 0.62" Flange Diameter.
MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, and A-286 Stainless Steel.
FEATURES: Locking thread incorporates MS21209 compliant insert, meets tensile strength requirements for NASM25027 shear nuts, and accepts screws with MIL-S-8879 UNJ threadform.
- Brackets & Clamps
- Decking & Floorboards
- Fairings
- Interiors
- Panels
- Systems Attachment
