Threaded bushing with locking thread enables localized reinforcement of and attachment to panel structure. Supplied with disposable installation fixture. 1.25" Flange Diameter.
Bushings

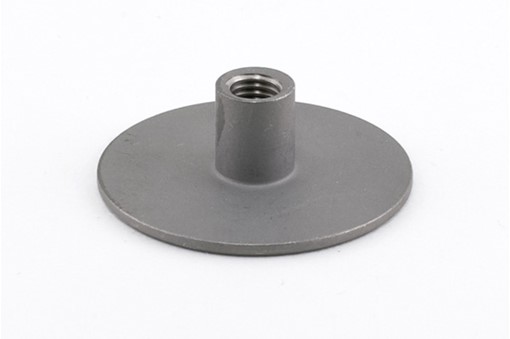

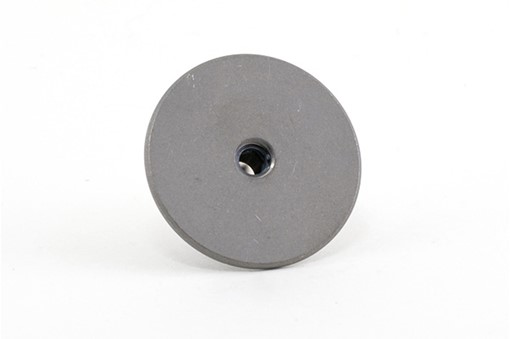

CB9084 - Locking Threaded Bushing, Large Flange
Genuine Product
AS9120B Certified
Fast Delivery
SIZES: Imperial fine thread sizes from 10-32 (.190"-32) to 5/16-24 (.312"-24), Imperial coarse thread sizes 1/4-20 (.250"-20) and 5/16-18 (.312"-18), and metric thread sizes from M5 to M8. 1.25" Flange Diameter.
MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, and A-286 Stainless Steel.
FEATURES: Standard 1.25" diameter flange, with optional .75" x 1.25" trimmed flange. Locking thread incorporates MS21209 compliant insert, meets tensile strength requirements for NASM25027 shear nuts, and accepts screws with MIL-S-8879 UNJ threadform.
- Brackets & Clamps
- Decking & Floorboards
- Fairings
- Interiors
- Panels
- Systems Attachment
